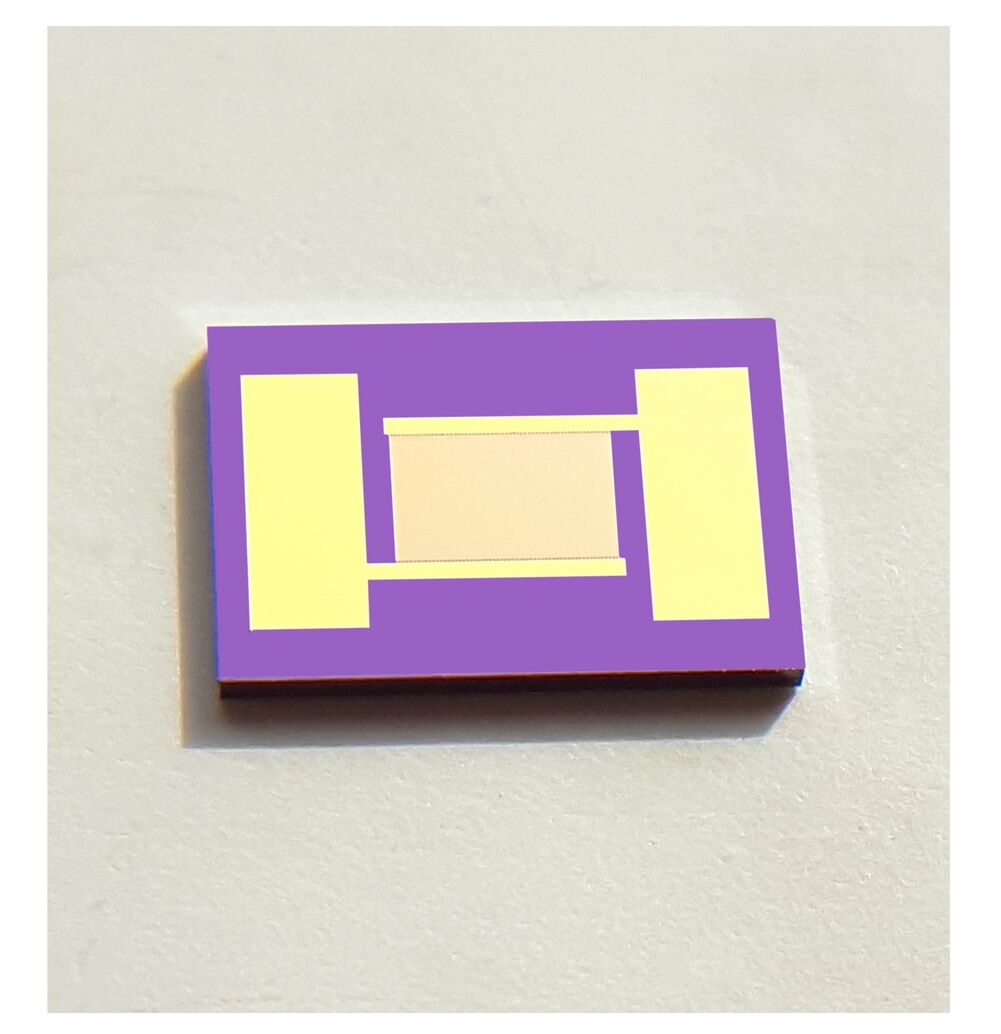

8μm single crystal silicon interdigital electrode high precision and high stability chemical gas biosensor photoelectric detection
| 【Numbering】BK2021012602 | 【CAS】cas | ||
| 【Item No.】BK2021012602 | 【specification】 | ||
|
|||

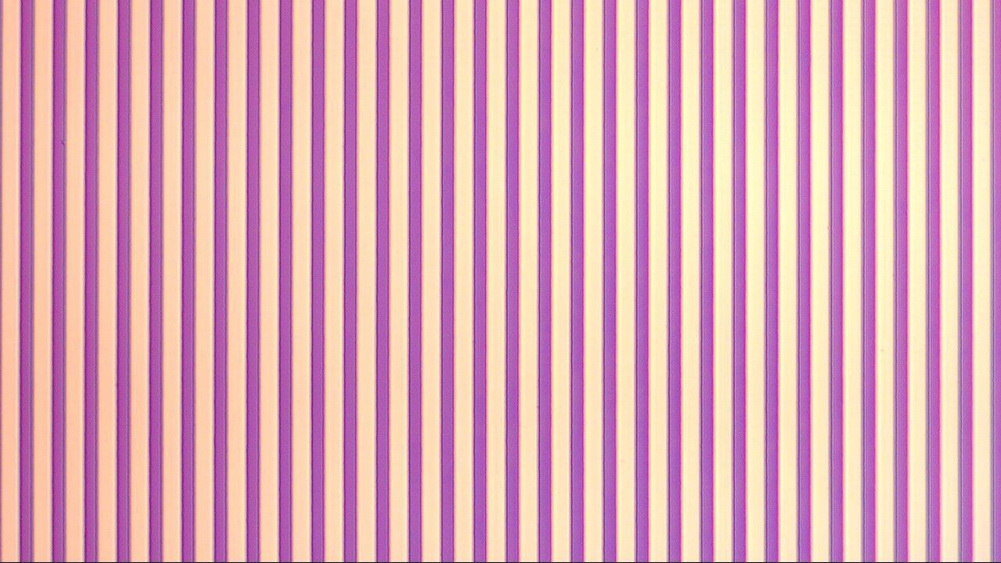

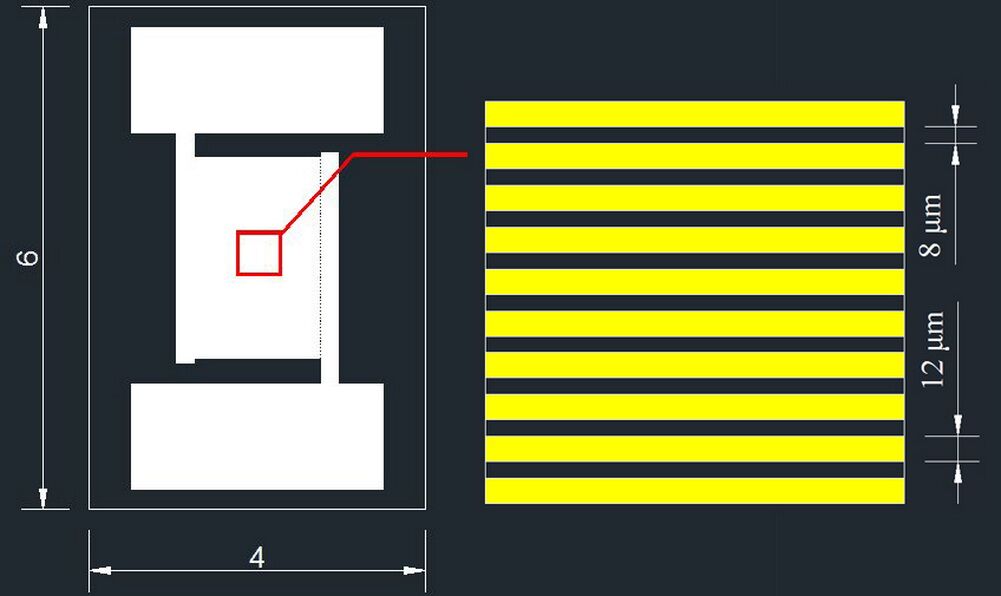

2. Line width: 12 μm, line distance: 8 μm, finger length: 1.5mm, number of interdigital pairs: 60 (120 fingers) 3. The electrode substrate is monocrystalline silicon, and the surface of the silicon wafer is grown with Si02, and the thickness is 300nm;
4. Metal layer structure: Cr /Au, the thickness is 10nm, 100nm respectively;
5. Electrode operating temperature range: -150℃～500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
